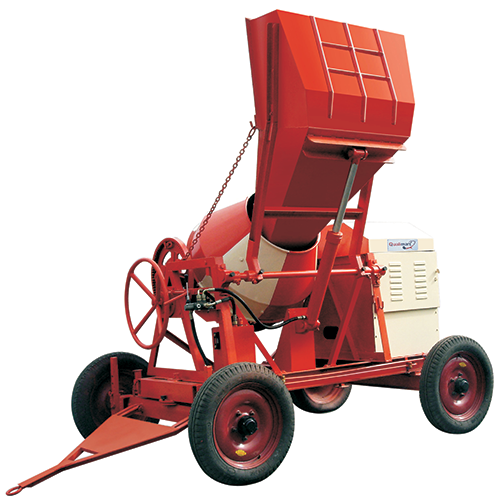

10/7 Full Bag Concrete Mixer With Hydraulic Hopper
-
- CM10H
10/7 Full Bag Concrete Mixer With Hydraulic Hopper
Overview
This Full Bag Cement Concrete Mixer Machine with Hydraulic Hopper is suitable to be used for mixing sand, cement and other aggregates at the construction site. The prime advantage of this machine is their low maintenance and operating cost. This concrete mixer is also known in the market for their durable finish standards and high-quality performance.
Unique Features Precision-engineered product with unique features
Easy Operation
Low Maintenance
Heavy Duty, Robust & Balanced Chassis
Special Platform On Operating Side For Convenient & Safe Operation
Easily Shift To One Site To Other Site
Heavy Blade For Homogeneous And Economical Mixing
Highly Efficient Production Capacity
Tyre Axle With Locking System
Brand New Pneumatic Tyres
Easily Operated And Heavy Duty Hydraulic Cylinder And Pump
Superior Quality Diesel Engine
Less Fuel Consumption
Optional
- Diesel Engine Or Electric Motor Option For Drive
Technical Specification
-
- Type
CM10H
- Unmixed Capacity
- 10 C.ft. / 280 Ltrs.
- Mixed Capacity
- 7 C.ft. / 200 Ltrs.
- Production Rate
- 6-8 m3 / Hr
- Hopper
- Heavy Duty Hydraulic Operated
- Power
- 7.5 HP Air Cooled Diesel Engine or 5 HP Three Phase Ele. Motor
- Mixing Drum
- Well Finished Heavy Duty with Bearing & Bush
- Mixing Drum Speed
- 19-21 RPM
- Towing Speed
- 15 Km / Hr
- Blade
- Heavy Duty Blades for Proper & Efficient Mixing
- Chassis
- Heavy Duty, Robust & Balanced Chassis
- Wheels
- Pneumatic Wheels (4 Nos.)
- Overall Dimensions (mm)
- 2600 x 2120 x 2800 (L x W x H)
- Weight (Kg.) Approx.
- 1350
